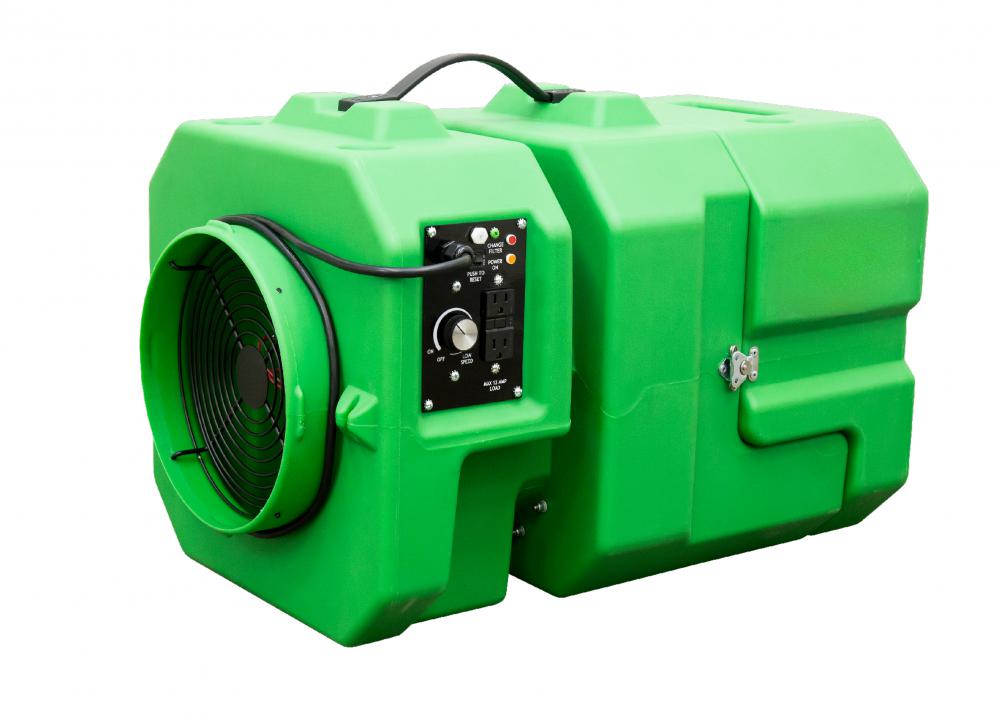

Amaircare Airwash MultiPro Air Scrubber Heavy VOC Focus 25 lbs Carbon

TECHNICAL SPECIFICATIONS for MultiPro with HEPA Configuration

24-A-1KPG-00

Maximum Recommended Area Size:      41,400 ft³ (provides 1 ACH/hr)



Amaircare AirWash MultiPro HEPA Configuration for Primarily Particulate Focus & Light VOC when using the optional inner carbon blanket.

Classification:  Portable HEPA (High Efficiency Particulate Arrestance) 100% Sealed Air Cleaning Device



Filter Life:         Stage 1:  Prefilter – 12 months

                          Stage 2: Foam PreFilter - 12 months

                          Stage 3: HEPA Filter - Typically 2-5 years

                          Stage 4: Optional Inner Carbon Blanket - variable based on usage



 Optional Filtration Configurations:

• Particulate and Moderate VOC, Gases, & Odors Focus - Combination of HEPA and a 5 lb Carbon Canister


                           Stage 1:  Prefilter – 12 months

                          Stage 2: Foam PreFilter - 12 months

                          Stage 3: HEPA Filter - Typically 2-5 years

                          Stage 4: 5 lb Carbon Canister - variable based on usage

                                      Granulated Carbon pellets encased in steel mesh canister



• Ultimate VOC Focus - VOC Chem with 25 lb Carbon Canister Filter Configuration:

                          Stage 1:  Prefilter – 12 months

                          Stage 2: Foam PreFilter - 12 months

                          Stage 3: 25 lb Carbon Canister - variable based on usage

                                      Granulated Carbon pellets encased in steel mesh canister

** No HEPA is used in this configuration **

** The 25 lb carbon canister replaces the HEPA filter and smaller carbon canister or carbon blanket **



Airflow:  800 CFM

HEPA: 100% Sealed HEPA Filter, 99.97% Efficient @ 0.3 Microns, 100 sq ft

Color:  Gray

Power Consumption:  235 Watts, 2 AMP

Dimensions: 19"W x 20"H x32"L

Weight:  42 lbs. (with HEPA configuration)

dBA Rating @ 6’: Low speed - 66 db, High speed - 86 db

Control:  Variable Speed Switch

Construction: Rotomold Plastic, Meets CSA 22.2 No 0.6 flammability requirements for polymer cabinets housing energized electrical components

Outflow: 12” Round with safety screen.

Fresh Air Intake:  12” Round

Motor:  High Efficiency AC Backward Curved Motor

Voltage:  115 VAC/1 phase/60 HZ Grounded

Protection:  Resistible thermal circuit breaker, thermally protected motor, accessory receptacle with ground fault, circuit interrupter (12 AMP 15 VAC Accessory Load

Certifications:  This equipment meets the technical requirements of CSA C22.2 No. 0.0.4, CSA Model Code SPE 1000 and CE 2015



There are 3 configurations for the Amaircare AirWash MultiPro Air Scrubber:

• Heavy VOCs, gases, & Odors (Shown) - This unit is frequently referred to as Amaircare AirWash MultiPro Air Scrubber with 25 lb carbon canister.  This unit uses prefilters and a 25 lb carbon canister called 14" Ultra VOC filter and does not use a HEPA.
• Particulate Focus & Moderate VOCs, gases & odors - This unit is referred to as Amaircare AirWash MultiPro Air Scrubber with HEPA Filter & 5 lb carbon canister and is shown as a separate item to avoid confusion.  This unit uses prefilters and a 5 lb carbon canister along with a HEPA filter for the particulate filtration as well as moderate VOCs, gases, & odors.
• Particulate Focus - This unit is referred to as Amaircare AirWash MultiPro Air Scrubber with HEPA Filter is shown as a separate item to avoid confusion.  This unit uses prefilters along with a HEPA filter for the particulate filtration as well as optional inner carbon blanket for light VOCs, gases, & odors.

**Something to keep in mind is that the machines are identical, the filters vary based on filtration needed.  With this in mind, if the usage changes with time,  you can simply change your filter configuration to match your filtration needs.

Note:  CFM (Cubic Feet per a Minute), ACH (Air Changes an Hour), Coverage are estimates and are based on factory and/or independent testing typically tested with the purifier on high in an open setting similar to a lab. Actual results may vary for a wide realm of reasons, including but not limited to the motor and the filters.   Factors such as filter loading, reduced voltage to the motor, and inlet and outlet ducting may affect airflow. Use these ratings as a general guideline only.

• Free Shipping Amaircare MultiPro Media Pad PreFilter, 24x91-A-D0919-NA, Pack of 24
  $258.00
  • Amaircare MultiPro PreFilter
  • Formerly AFC1000726
  • Media Pad Pre filter (Pack of 24)
  • 13” x 13” x 2”
• Free Shipping Amaircare MultiPro Media Pad PreFilter, 48x91-A-D0919-NA, Pack of 48
  $500.00
  • Amaircare MultiPro PreFilter
  • Formerly AFC1000726
  • Extra Savings - Qty 48
  • 13” x 13” x 2”
• Free Shipping Amaircare MultiPro PreFilter, 8x91-A-D020-NA, Pleated Pre filter, Pack of 8
  $138.00
  • Fits Amaircare MultiPro
  • Formerly AFC1057554
  • Pleated Pre filter (Pack of 8)
  • 13” x 13” x 2”, MERV 8
• Free Shipping Amaircare MultiPro Ultra Carbon VOC Canister 25 lbs, 14 in Ultra
  Starting at $289.00
  • Fits MultiPro Air Scrubbers
  • 25 lb Carbon Canister
  • Heavy VOC Focus
  • Replaces HEPA
• Free Shipping Amaircare Washable Foam 14 in Prefilter Package of 24 (91-A-1407-ET)
  $450.00
  • 91-A-1407-ET
  • Foam, Washable Pre filter
  • Pack of 24
  • 14" PreFilter

• Free Shipping Amaircare Airwash MultiPro HEPA Air Scrubber Optional Light VOC Protection
  Starting at $1,039.00
  • Covers 41,400 ft3 (provides 1 ACH)
  • HEPA & Optional Carbon Blanket
  • CFM 800
  • Focus is Particulates
• Free Shipping Amaircare Airwash HEPA MultiPro Air Scrubber Moderate VOC Focus - Hepa & 5 lbs Carbon
  $1,249.00
  • Covers 41,400 ft3 (provides 1 ACH)
  • HEPA & 5 lb Carbon Canister
  • Est CFM 700-800
  • Focus is Particulate with Moderate VOCs, Gases, Odors
• Free Shipping Amaircare 4000 VOC with HEPA & Carbon Canister Airwash Filtration System
  $1,049.00
  • Covers 18,000 ft3 (provides 1 ACH)
  • 300 CFM
  • Variable speed switch
  • HEPA & Carbon Canister
• Free Shipping Amaircare 7500 Cart Vocarb Chem Bio AirWash Air Scrubber
  $3,999.00
  • Covers 60,000 ft3 (provides 1 ACH)
  • 1000 CFM
  • 2 Sets of 16" Filters
  • Air Scrubber for VOCs, gases, odors, mold & more

Amaircare Airwash MultiPro Air Scrubber with HEAVY VOC focus features a 25 lb carbon canister and is used to solve numerous air purification needs where HEAVY VOCs, Gases, and odors are the concern. It is frequently referred to as an air scrubber, air wash, Chem Airwash, Heavy Duty or Commercial air purifier.

Some common uses are as follows:

• Marijuana Dispensaries
• Laser printers
• Fume Extractor
• Paint Odors & Heavy VOCs
• Forrest Fires
• Odor Control

Frequently, laser printers and marijuana dispensaries will even use 2 units in conjunction with each other to tackle particulate and HEAVY VOCs. Since the units are stackable, many clients also will use the various filter configurations in series.

HOW TO SIZE

Air Changes per Hour (ACH)
(How many times can all the air in an area/room(s) be cleaned through the filter each hour?)

	1 ACH	2 ACH	3 ACH	4 ACH	5 ACH	6 ACH
6000V Cart	36 000 ft3	18 000 ft3	12 000 ft3	9 000 ft3	7 200 ft3	6 000 ft3
7500 Cart	60 000 ft3	30 000 ft3	20 000 ft3	15 000 ft3	12 000 ft3	10 000 ft3
IS5000/IS5000 Cart	135 000 ft3	67 500 ft3	45 000 ft3	33 750 ft3	27 000 ft3	22 500 ft3
4000 VOC Chem	18 000 ft3	9 000 ft3	6 000 ft3	4 500 ft3	3 600 ft3	3 000 ft3
Fume Extractor	13 200 ft3	6 600 ft3	4 400 ft3	3 300 ft3	2 640 ft3	2 200 ft3



Based on 8′ ceilings
Generally speaking, the more air changes per hour (ACH) you can provide, the more effective a HEPA filter can be.
1 ACH provides excellent air cleaning results (higher is recommended for people with sensitivities).
Remember: More HEPA is better than less, but some HEPA is better than nothing at all.

View the Amaircare Air Scrubber Product Catalog by Visiting Amaircare Air Scrubber Industrial Product Catalog.

Understanding the wide array of power the MultiPro can offer based on numerous filter configurations, and why it excels over its competition in function and versatility: Learn More

Download the Amaircare AirWash MultiPro Manual by Visiting Amaircare AirWash MultiPro Manual.

Download the Amaircare AirWash MultiPro Spec Sheet by Visiting Amaircare AirWash Spec Sheet.

Download the Amaircare Product Catalog by Visiting Amaircare Product Catalog.

Download Activated Carbon Adsorbency Ratings for Amaircare VOC Air Purifiers by clicking here.

Download Amaircare MultiPro Certification
