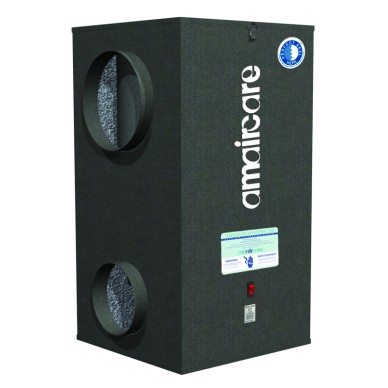

Amaircare 350 Airwash Whisper HEPA Air Purifier - Install

Model: 13-A-1KME-00

SKU: amr-ap-us1256

Ozone Free: Certified UL 867 / UL 2998

Zoom In

Ozone Free

Free Shipping

Leadtime estimated at 3-8 weeks.

Amaircare 350 Airwash Whisper heavy duty HEPA central air purifier can be installed in the HVAC or independently installed covering over 2625 sq ft is ideal for a whole home or office system. The Amaircare 350 Airwash Whipser, AWW350, HEPA air purifier can also be installed to run independently. Installation Kit available.

Focus on particulate matter.

Limited 5 year warranty. This product is also known as 350 Airwash Whisper Plus, 350AWW Plus

Product Description

Amaircare 350 Airwash Whisper heavy duty HEPA air purifier can be installed in the HVAC or independently covering over 2625 sq ft is ideal for a whole home or office system. Focus on particulate matter.

Full cabinet insulation allows for operation that is quiet in a wide variety of climates. Installation to the air handling system is quick and simple. The by-pass design allows for a portion of air to be diverted from the return air duct, cleaned and entered back into the air circulation. This method efficiently captures air pollution without any risk to the function of the air handling system.

The 350 Airwash Whisper, AWW350, can also be installed to run independently. Installation Kit available 8” and 10” ducts

All Amaircare® air filtration systems are covered by a limited 5 year warranty.

Optional stage three variation of filtration with an added VOC canister. Granulated Carbon pellets incased in steel mesh canister (1550 g = 1,705,000 m² adsorption surface area).

CFM: 340 CFM

Amaircare air cleaners (airwash, air scrubbers, chem bio airwash) are individually tested to meet HEPA standards and beyond. This means that the complete air cleaner system will remove at least 99.97% of all particles as small as 0.3 microns (1/300th the size of a human hair or 0.000012 of an inch) that enter the air cleaner and are also 99.96% efficient at 0.1 microns.

FEATURES AND BENEFITS

Complete Delivery – uses existing air duct network in your home to deliver clean air to every room.
Bypass Installation – mounts on the return air portion of the air handling system and does not impact the HVAC system or endanger the HVAC warranty.
Interior Filter – the 3 Stage filtration cartridge is contained and protected within a durable steel cabinet.
Perfect Seal 3 Stage Filtration – captures large particulate and VOCs with the first stage foam prefilter, harmful and irritating particulate are trapped with the second stage HEPA filter that locks in place and chemical/gas pollution are adsorbed by the third stage carbon VOC filter.
Easy-Twist HEPA Cartridge – Filters are convenient to access and change with just a twist of the main HEPA Cartridge.
Perfect Seal Filter Configuration – Easy-Twist HEPA locks into place to ensure the filter is completely sealed in the unit and no polluted air leaks.
Fully Insulated Construction – provides whisper quiet operation and increased protection from extreme temperatures.
Illuminated ON/OFF Toggle Control – easily switch operation Off and On with the simple rocker control switch. Continuous operation is recommended for optimum air quality.
High Efficiency AC Backward Curved Motorized Fan – High performance air flow at a low running cost, minimal drain on electricity resources with years of continuous performance.
Steel Construction with Baked Thermoset Powder Finish – durable long lasting housing that doesn’t off-gas chemicals, true to the integrity of providing clean air!

Optional VOC Filter Upgrade – radically increases the capacity for capturing chemical and gas pollution. [rendering]

Also available in 220 and most plug types.

Optional Upgrades:

Third stage VOC canister upgrade available.

All Amaircare® air filtration systems are covered by a limited 5 year warranty.

Specifications

TECHNICAL SPECIFICATIONS

ITEM: 13-A-1KME-00

Maximum Recommended Area Size: 2625 ft² (8’ ceilings)

Filter Life: Prefilter – 12 months

HEPA Filter – 3 to 5 years

Inner Carbon – 6 months

Filter Configuration: Cylindrical Perfect Seal 3-Stage Cartridge (13″ Diameter x 16” Height)

Stage One: 1/8” Foam Prefilter

Stage Two: 100? sq. ft Pleated Easy Twist HEPA Cartridge

Stage Three: ½” non-woven polyester filter media imbued 200% with Activated Carbon (164 g = 180,400 m² adsorption surface area)

Optional Stage Three Canister: Granulated Carbon pellets incased in steel mesh canister (1550 g = 1,705,000 m² adsorption surface area)

Airflow: 340 CFM @ 0.5″ W.C. (575m³/hr. @ 12.7mm W.C.)

Power Consumption: 100 W

Dimensions: 14.5” W x 14.5” L x 27”H

Weight: 33 lbs.

Decibels: 0 ft: 74 db

6 ft: 54.2 db

Control: Manual Toggle – ON/OFF

Construction: 24 gauge steel housing, durable baked thermoset powder finish

Intake: 8” D

Outflow: 6” D

Colour: Meteorite

Motor: Backward curved impeller

Voltage: 115 volt*

Cord/Plug: Standard 115 volt plug with ground pin and 8 foot long 3 conductor 18 gauge, attached cord*

*available in most commercial voltages with standard plugs.

Filters, Bulbs, Refills

Free Shipping Amaircare 16 ET HEPA Filter for Larger Purifiers and Air Scrubbers

$239.00
- Fits Most Larger Purifiers & Scrubbers
- Check every 2 years
- Stage 2 of Filtration
- Easy Twist HEPA
Free Shipping Amaircare 16 in ET Annual Standard Filter Kit for Larger Purifiers and Air Scrubbers

$119.00
- Fits Most Larger Purifiers & Scrubbers
- Replace yearly
- Stage 1 and Stage 3 of Filtration
- Particulate Focus

Video

Barb Lulay demonstrates the Easy Twist Filters and installing a VOC canister into a HEPA unit using an Amaircare 3000 unit.

Product Catalog

View the Amaircare Product Catalog by Visiting Amaircare Product Catalog.

Comparison

HOW TO SIZE

Air Changes per Hour (ACH)
(How many times can all the air in an area/room(s) be cleaned through the filter each hour?)

Area Size →

750ft²

1000ft²

1500ft²

2000ft²

2500ft²

3000ft²

4000ft²

5000ft²

6000ft²

7000ft²

7500ft²

8500ft²

11,250ft²

AWW350

3.5 ACH

2.6 ACH

1.8 ACH

1.3 ACH

1.1 ACH

AWW675

6.8 ACH

5.1 ACH

3.4 ACH

2.5 ACH

2.0 ACH

1.7 ACH

1.3 ACH

1.0 ACH

7500

5.0 ACH

3.8 ACH

3.0 ACH

2.5 ACH

1.9 ACH

1.5 ACH

1.3 ACH

1.1 ACH

1.0 ACH

10 000

5.6 ACH

4.5 ACH

3.8 ACH

2.8 ACH

2.3 ACH

1.9 ACH

1.6 ACH

1.5 ACH

1.3 ACH

1.0 ACH

Based on 8′ ceilings
Generally speaking, the more air changes per hour (ACH) you can provide, the more effective a HEPA filter can be.
1 ACH provides excellent air cleaning results (higher is recommended for people with sensitivities).
Remember: More HEPA is better than less, but some HEPA is better than nothing at all.

More Info

View the Amaircare Air Scrubber Product Catalog by Visiting Amaircare Air Scrubber Industrial Product Catalog.

Download Amaircare 350 Airwash Whisper air purifier spec sheet by clicking here.

Download Amaircare 350 Airwash Whisper air purifier brochure by clicking here.

Download Amaircare 350 Airwash Whisper air purifier Installation by clicking here.

Download Amaircare 350 Pet Center Review by clicking here.

Download Amaircare 675 and 350 Test Results by clicking here.

Download Amaircare Activated Carbon Adsorbency Ratings by clicking here.

Which Filter Type to Choose

The 350 requires 1 set of filters

Molded filter configuration is before Nov 2015 (Top of HEPA filter is opened like a donut)
Typically Easy Twist configuration is after Nov 2015 (Top of HEPA filter is closed)
If in doubt, please contact us and we\'d be happy to assist you.

Maintenance Information:

Filter Life:

Prefilter – 12 months

HEPA Filter – 3 to 5 years

Inner Carbon – 6 months
