RAP Series 48 CCHD with carbon filter from Electrocorp an industrial wing of AllerAir is the best solution for laser printers such as but not limited to Orbotech laser printers. Electrocorp’s affordable air filters for Laser Direct Digital Imaging have been engineered to protect the mirrored surfaces of your LDI tool’s laser optics. Scrubbed air is constantly delivered from the RAP scrubber to the LDI tool’s air intake port via flexible ducting (optional plenum with the RAP scrubber)
Product Description

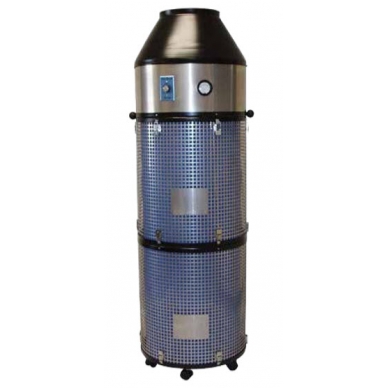

Electrocorp RAP Series - RAP 48 CCHD Industrial Air Scrubber LDI Room Air Quality Control
The Electrocorp Advantage Electrocorp’s affordable air filters for Laser Direct Digital Imaging have been engineered to protect the mirrored surfaces of your LDI tool’s laser optics. Scrubbed air is constantly delivered from the RAP scrubber to the LDI tool’s air intake port via flexible ducting (optional plenum with the RAP scrubber).
Only air that has passed through the RAP’s 5 stage filtration process enters the interior of the LDI tool where it acts to positively pressurize the interior air volume. The constant clean air flow that is created prevents hazing from occurring on the tool’s mirrors by preventing contaminants from settling on the mirrored surfaces. While safeguarding your sensitive laser optics, this capture method offers superior protection for operators and prevents product degradation due to misaligned traces.
NOTE: RAP can function as full room recirculating scrubber when ducting is disconnected from flanged top.
- Small footprint allows for easy placement where floor space is limited
- Prevents hazing on the LDI tool’s laser optics
- On half-speed delivers 3000 ft3 of scrubbed air every 4 minutes to LDI tool
- Ideal for facilities where floor space is limited
- Captures chemicals, PGMEA gases, odors and VOC’s
- HEPA filtration for particulate: 99.97% efficient at .3 microns
- Nylon wheels for easy placement
- No tools required for servicing
- Powder coated screen for easy cleaning
- Variable speed control from 500 to 1500 CFM
Optional UV lamp for added protection is available.
The overall design and capabilities of the RAP Series makes these units the best choice for clients who need fast and effective chemical and odor relief and who are concerned about biological contaminants such as mold spores, bacteria and viruses, since the RAPs can also be equipped with a UV light." -- compliments of Electrocorp
Specifications
Technical Specifications
- Carbon Filter 120 lbs.
- Custom blend for LDI tools Filtration HEPA Filter,
- 99.97% efficient at 0.3 microns,
- System Pre-filter Features 2” nylon casters (6),
- UL/CSA listed blower,
- Internal thermal protection
- Free Flowing CFM: 2000 CFM
- Delivered CFM: 500-1500 CFM
- Sound level (1m) 50dB (min. setting) - 64dB (max. setting)
- Voltage/Current 3.6 A at 115V/60Hz
- Dimensions 62" (h) x 22”
- Options Flexible ducting called Plenum for an additional charge
More Info
View the RAP48CCHD Spec Sheet: RAP48CCHD
View the RAP48CCH Manual: RAP48CCH
