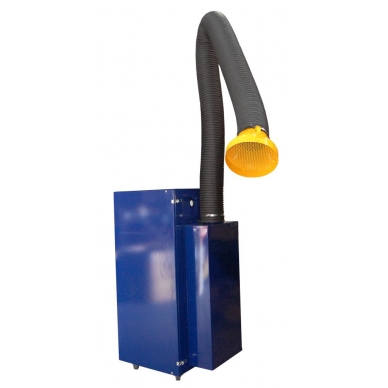

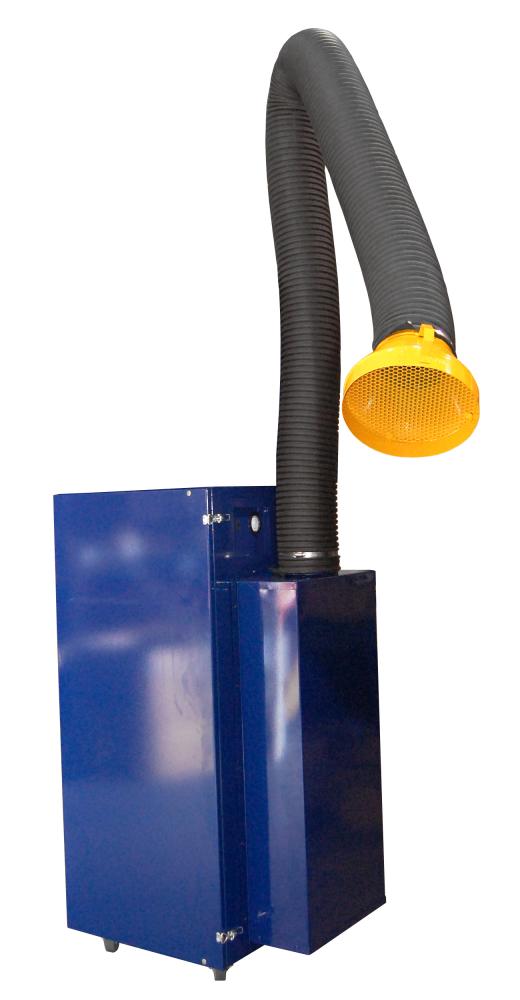

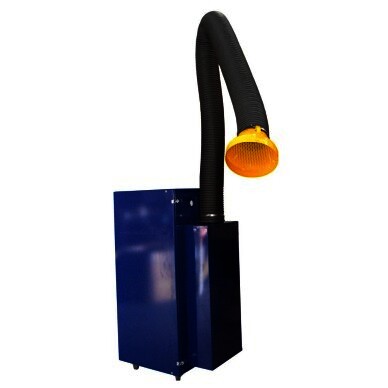

Electrocorp MD750 Fume Extractor w/ Arm 6" x 10"
Product Description
MD750 by Electrocorp is an excellent industrial air purifier for welders, solders, and laser engravers.
Industrial Air Filtration for Welding
Electrocorp medium duty fume extractors offer a high draw solution to welding smoke and fumes. Our portable fume extractors feature at-the-source protection removing airborne chemicals, vapors, fumes and smoke directly from the workstation. Units feature 2" HEPA fume filters that capture airborne smoke particles and a 40 lb. deep bed activated carbon filter for chemicals, gases and smoke odor. Ideal for MIG, TIG, arc and robotic welding.
· Manufacturing operations
· Truck equipment shops
· Aircraft welding
· Welding fabrication centers
· Ship yards
Eco-Friendly Features
- Metal Housing
- Ozone-free
- Energy efficient
- Refillable carbon canisters
- North American parts and materials
- North American assembly
Technical Specifications
- Carbon Filter 80 lbs.
- Unit Weight with skid 310 lbs
- Filtration 6” HEPA
- System 2” Pre-filter
- Spark arrestor for welding only
- SFM 950
- Dimensions 21" x 24.5" x 52"
Specifications
| Specifications | |
| Filtration System | 80 lb. Carbon filter, 6 Ins. HEPA, 2 Ins. Prefilter, Spark arrestor for welding |
| Carbon Weight | 80 lbs |
| HEPA | 18.5 x 23.5 x 6 inches |
| Surface Area of HEPA media | 1498 sq in |
| Micro HEPA | NA |
| CFM | 950 SFM |
| Speed | variable |
| UV Lamp | NA |
| Available Colors | Blue |
| Voltage | 120V |
| Amps | 3.6 / 1.8 |
| Cord Length | 8 ft |
| Noise Level | 50-64 dBA |
| Maneuverability | 3 Ins rubber wheels, with 2 locking wheels |
| Filter Access | Front door |
| Motor Details | Motorized Impeller |
| Dimensions | 52 x 24.5 x 21 Ins. (L x W x H) |
| Shipping Weight | Approx 315 lbs |
| Operating Weight | 275 lbs |
| Number of Units on a Pallet | 1 |
| CSA/UL Listed | Components |
Closer Look
MD 750 Fume Extractor remove Fumes and Particles Quickly and Safely with this Powerful Comercial Fume Extraction System, with 80 lbs of Industrial Strength Carbon, 6" HEPA Filter, Pre-Filters and 950 CFM Intake Speed.
Commercial air purifier captures & removes industrial welding, solder & laser chemicals gases, voc odors & collects dust at source in workshops with quality filter system.
The Electrocorp MD 750 Fume Extractor is a powerful source capture air purifier that removes harmful chemicals, vapors, and particles in commercial and industrial situations.
Powerful VOCARB carbon blend removes chemicals and gases such as benzene, formaldehyde, hydrogen sulfide gas, etc. Custom carbon blends are also available to remove specific chemicals.
This unit is perfectly suited for Welding, Soldering, Research Labs, Art Restoration, Funeral Homes, Morgues, Industrial Workshops, Manufacturing & More!
Move the Fume Extractor around easily or keep it steady with 3" industrial grade rubber locking wheels. Solid steel construction--built to last!
QUICK FACTS:
- 80 lb. carbon filter
- 6" HEPA filter to remove 99.97% of particles down to 0.3 microns
- 2" pre-filter
- Spark arrestor filter for welding only
- Dimensions: 21" x 24.5" x 52"
- 950 SFM (square feet per minute) output
Maintenance Info
| i6500 Vocarb Carbon | 65FC0312 | $1,055.98 |
| MD750 Hepa Filter (6" ) | 65FH0421 | $396.98 |
| i6500 Pre-filter 4 pack (2") | 65FH0413-4 | $105.98 |
| i6500 Pre-filter 8 pack (2") | 65FH0413-8 | $197.98 |
| i6500 tar-Trap 6 pack ( 2") [Smoke option pre-filter]i6500 tar-Trap 6 pack ( 2") [Smoke option pre-filter] | 65FH0417-6 | $175.98 |
