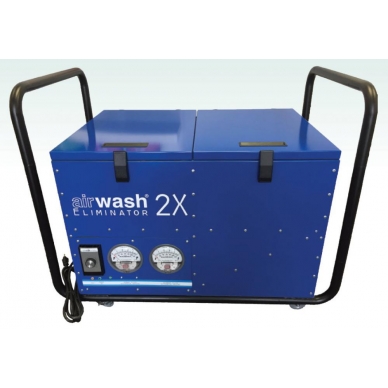

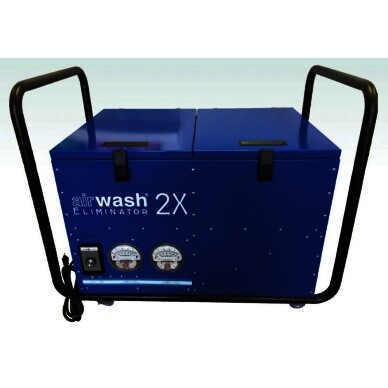

Amaircare AirWash Eliminator 2X Double Scrub HEPA and Carbon Air Filtration System

Name: Amaircare AirWash Eliminator 2X Double Scrub HEPA and Carbon Air Filtration System
Brand: Amaircare
SKU: amr-ap-us1456
Availability: outofstock

Model: 28-A-1KMB-00

SKU: amr-ap-us1456

Zoom In

Free Shipping

Sorry this item has been discontinued by Amaricare.

The Eliminator offers a wide array of filter configurations to fit your exact need. The air passes through one 14 in set of filters and then through the second allowing a double scrub of the air to assure all contaminants are removed.

Air Flow (CFM): 1000 (Max)

Service Area: 7500 sq ft (Based on 8 ft ceilings and 1 air change an hour)

Ideal for laser printers or any printer with a vent. The Eliminator is normally ducted to the machine for maximum results.

Product Description

Sorry this item has been discontinued by Amaricare.

Amaircare AirWash Eliminator 2X Double Scrub HEPA and Carbon Air Filtration System unlike any air scrubber on the market. The Eliminator 2X features 6-stage filtration system that double scrubs contaminated air to exhaust the cleanest air.

The Eliminator offers a wide array of filter configurations to fit your exact need. The air passes through one 14 in set of filters and then through the second allowing a double scrub of the air to assure all contaminants are removed.

Air Flow (CFM): 1000 (Max)

Service Area: 7500 sq ft (Based on 8 ft ceilings and 1 air change an hour)
Commonly used for laser printers to double scrub the air for the healthiest environment for you and your employees.

Ideal for laser printers or any printer with a vent. The Eliminator is normally ducted to the machine for maximum results.

Double-Scrub

What does Double Scrub mean? Air is filtered through the first 3 stages. This filtered air is then exhausted into a chamber where it is filtered through the second set of three filter stages (ie Double-Scrubbed).

Six -Stage Filtration

1. Stage 1:

Carbon Prefilter - Removes larger particulate matter, dust and odors

2. Stage 2:

HEPA Filter - 99.97% efficient to .3 microns. Removes dust, pollen, bacteria, dander, attached viruses, cigarette smoke, radon progenies and more.

3. Stage 3:

VOC Filter - Removes gas molecules, vapors, and V.O.C's that become airborne when using solvents, finishes, adhesives, complex coatings, and more.

4. Stage 4 (the start of chamber 2):

Carbon Prefilter - Removes residual gases.

5. Stage 5 (Customization of Filter Configuration is Available):

Ultra VOC Canister (optional) - Carbon Canister containing 15 lbs of carbon for extreme gaseous chemical adsorption or a second HEPA Filtration Cartridge for maximum particulate and biologicals removal.

6. Stage 6:

Upgraded Carbon - Special carbon blends to focus on specific chemical pollutants such as but not limited to formaldehyde.

Added Features

Easy Snap-Latch Filter Access Panels
Magnahelic Differential Pressure Gauges
Durable Steel Tube Bumper Frame with Casters
Metal Construction does not emit toxins like some plastics and stands up to ear-and-tear: extremely durable
Easy to Change Filters- Top load design makes changing filters fast and easy saving you time and money.
High-Efficiency Motor/Fan - Uses less electricity and can run non-stop for years

Specifications

TECHNICAL SPECIFICATIONS

28-A-1KMB-00

Maximum Recommended Area Size: 7500 sq ft or 60,000 ft³ (provides 1 ACH/hr)

Amaircare AirWash Eliminator 2X Double Scrub HEPA and Carbon Air Filtration System

Classification: Portable HEPA (High Efficiency Particulate Arrestance) 100% Sealed Air Cleaning Device

Airflow: 1000 CFM with configurations with carbon canisters

HEPA: 100% Sealed HEPA Filter, 99.97% Efficient @ 0.3 Microns

Color: Blue/Black

Power Consumption: 470 Watts (Max)

Dimensions: 23"W x 340"H x40"L

Weight: 75 lbs. (with HEPA configuration)

Control: Variable Speed Switch

Materials: 18 Gauge cold rolled steel

Finish: Baked Thermoset Powder Finish

Outflow: 6” Ducted Round Collars

Fresh Air Intake: 6” Ducted Round Collars

Motor: High Efficiency AC Backward Curved Motor

Voltage: 120 VAC/1 phase/60 Hz Grounded or 240 Volts 50/60 Hz

Protection: Resistible thermal circuit breaker, thermally protected motor, accessory receptacle with ground fault, circuit interrupter (12 AMP 15 VAC Accessory Load

Motor/Fan:

Thermally protected Class "B" insulated backward curved impeller
Designed for continuous operation
Run tested for 50,000 hours
Service: 120 VAC/1 phase/60 Hz Grounded or 240 Volts 50/60 Hz

*available in most commercial voltages with standard plugs.

Six-Stage Filtration

The Airwash Eliminator 2X employs a 6-stage in line filtration system that double-scrubs polluted air to exhaust the cleanest air. The filter set up allows for multiple combinations of filters that are easily interchangeable.

Stage 1: Carbon Prefilter - Removes dust and odors.
Stage 2: HEPA filter - 99.97% efficient @ 0.3 microns. Removes dust, pollen, bacteria, dander, attached viruses, cigarette smoke, radon progenies and more.
Stage 3: V.O.C. filter - Removes gas molecules, including potentially hazardous VOC’s that become airborne when using solvents, finishes, adhesives, complex coatings and vapors.
Stage 4: Carbon Prefilter - Removes residual gases.
Stage 5: Ultra VOC Canister (optional) - 15lb carbon canister for extreme gaseous chemical adsorption or a second HEPA Filtration Cartridge for maximum particulate and biologicals removal.
Stage 6: Upgraded Carbon - Special carbon blends to focus on specific target chemical pollutants.

Filter Configurations

Excellent way to customize your Eliminator for your specific needs. The Eliminator is an excellent investment to any business because if your needs change, you can simply change your filter configurations to match your needs without having to buy a whole other air purifier.

Configuration 1: Double HEPA/Carbon

- Ideal for clean rooms and medical applications.

Double HEPA with 100% Carbon: Air is filtered by one HEPA filter and carbon filter and then exhausted to a second HEPA filter and Carbon filter before exiting the unit. This double HEPA/Carbon configuration takes 1,000,000 particles (above .3 microns)/cubic foott to 0.009 particles (at .3 microns)/cubic foot.

Configuration 2: HEPA/Carbon & Full Carbon

- Ideal for applications with dust and high chemical contaminants such as but not limited to laser printers.

HEPA with 100% Carbon and ALL Carbon: Air is filtered by one HEPA filter and then exhausted to a second a FULL Carbon filter before exiting the unit.

Configuration 3: Full Carbon & Full Carbon

- Ideal for applications with extreme chemical gases and/or VOCs.

Air is filtered through a set of FULL Carbon and then passed through to a second set of FULL Carbon.

Optional Upgrades:

Standard HEPA can be upgraded to an ULPA FIlter where filtration is 99.999% efficient down to .1 micron.
Carbon can be upgraded to target specific hard to get chemicals such as but not limited to formaldehyde, acidic gases, metallic vapors and more.

More Info

View the Amaircare Air Scrubber Product Catalog by Visiting Amaircare Air Scrubber Industrial Product Catalog.

Download the Amaircare AirWash Eliminator 2X Double Scrubber Spec Sheet by Visiting Amaircare AirWash Eliminator Spec Sheet.

Download the Amaircare Product Catalog by Visiting Amaircare Product Catalog.

Download Activated Carbon Adsorbency Ratings for Amaircare VOC Air Purifiers by clicking here.
