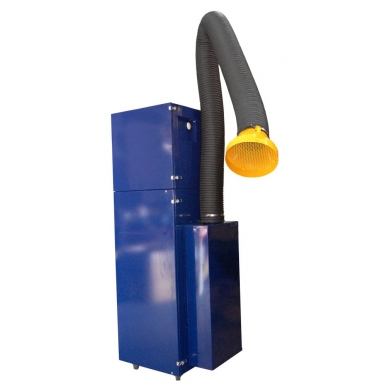

Electrocorp HD950 Fume Extractor w/ Arm 70" long x 10" dome
This item has been discontinued.
HD950 by Electrocorp is an excellent industrial air purifier for welders, solders, and laser engravers. Electrocorp heavy duty fume extractors offer a high draw solution to welding smoke and fumes. Portable fume extractors feature at-the-source protection removing airborne chemicals, vapors, fumes and smoke directly from the workstation.
Product Description
This item has been discontinued.
HD950 by Electrocorp is an excellent industrial air purifier for welders, solders, and laser engravers.
Industrial Air Filtration for Welding
Electrocorp heavy duty fume extractors offer a high draw solution to welding smoke and fumes. Portable fume extractors feature at-the-source protection removing airborne chemicals, vapors, fumes and smoke directly from the workstation. Units feature 2" HEPA fume filters that capture airborne smoke particles and a 40 lb. deep bed activated carbon filter for chemicals, gases and smoke odor. Ideal for MIG, TIG, arc and robotic welding.
· Steel fabrication shops
· Manufacturing operations
· Truck and body shops
· Equipment operations
· Aircraft welding
· Ship yards
Eco-Friendly Features:
- Metal Housing
- Ozone-free
- Energy efficient
- Refillable carbon canisters
- North American parts and materials
- North American assembly
Technical Specifications
- Carbon Filter 80 lbs.
- Filtration 12" HEPA
- System 2 x 2" Pre-filters
- Spark arrestor filter for welding only
- SFM 1300
- Dimensions 21" x 24.5" x 72"
- Options 2nd arm
- HD950 Fume Extractor
Specifications
| Specifications | |
| Room Size | NA |
| Filtration System | 80 lb. Carbon filter, 12 Ins. HEPA, 2 x 2 Ins. Prefilter, Spark arrestor for welding only. |
| Carbon Weight | 80 lbs |
| HEPA | 18.5 x 23.5 x 12 INS |
| Surface Area of HEPA media | 2997.75 sq in |
| Micro HEPA | NA |
| CFM | 1300 SFM |
| Speed | variable |
| UV Lamp | NA |
| Available Colors | Blue |
| Voltage | 120V |
| Amps | 9.2 |
| Cord Length | 8 ft |
| Noise Level | 74 dBA |
| Maneuverability | 3 Ins rubber wheels, with 2 locking wheels |
| Filter Access | Front door |
| Motor Details | motor with a blower wheel |
| Dimensions | 72 x 24.5 x 21 Ins. (L x W x H) |
| Shipping Weight | Approx 395 lbs |
| Operating Weight | 355 lbs |
| Number of Units per Pallet | 1 |
| CSA/UL Listed | Components |
| Pressure Guage | Yes |
| Overload Protection | Yes |
Closer Look
Electrocorp HD 950 Heavy Duty Fume Extractor
Remove High Levels of Chemical Fumes & Particles Quickly and Safely with this Powerful Fume Extraction System, with 80 lbs Industrial Carbon Filter, 12" HEPA Filter, Pre-Filters and 1300 CFM Intake speed.
QUICK FACTS:
- 80 lb Industrial Vocarb Carbon Filter
- 12" HEPA filter to remove 99.97% of particles down to 0.3 microns
- 2" Pre-filter
- 160 lb Carbon Filter Version Available at No Extra Charge (no HEPA in this version)
- Spark arrestor filter (for welding only)
- Dimensions: 21" x 24.5" x 72"
- 1300 SFM (square feet per minute) output
The Electrocorp MD 950 Fume Extractor is a powerful source capture air purifier that removes harmful chemicals, vapors, and particles in commercial and industrial situations. The MD 950 is the older brother of the famous MD 750, but with more carbon and more fume-capturing air flow up to 1300 SFM!
Includes powerful VOCARB carbon blend removes chemicals and gases such as benzene, formaldehyde, hydrogen sulfide gas, etc. Custom carbon blends are also available to remove specific chemicals.
This unit is perfectly suited for Welding, Soldering, Research Labs, Art Restoration, Funeral Homes, Morgues, Industrial Workshops, Manufacturing & More!
Move the Fume Extractor around easily or keep it steady with 3" industrial grade rubber locking wheels. Solid steel construction--built to last!
Options:
Additional arms available
160 lb Carbon Version or 80 lb Carbon with HEPA
Maintenance Info
| i6500 Vocarb Carbon | 65FC0312 | $1,055.98 |
| i6500 HEPA Wood 12" | 65FH0411 | $395.98 |
| i6500 HEPA Metal 12" | 65FH0410 | $395.98 |
| i6500 Pre-filter 4 pack (2") | 65FH0413-4 | $105.98 |
| i6500 Pre-filter 8 pack (2") | 65FH0413-8 | $197.98 |
| i6500 tar-Trap 6 pack ( 2") [Smoke option pre-filter]i6500 tar-Trap 6 pack ( 2") [Smoke option pre-filter] | 65FH0417-6 | $175.98 |
